House Plan 41841
Craftsman Style House Plan with Open Concept and Split Bedroom Layout
sq ft
2030beds
3baths
2bays
0width
50'depth
64'
click for more images
Plan Pricing
Additional Notes
**Please call to add the attached 2-car garage option. No additional fee.**Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 2030 sq ft |
| Main Living Area: | 2030 sq ft |
| Garage Type: | None |
| See our garage plan collection. If you order a house and garage plan at the same time, you will get 10% off your total order amount. | |
| Foundation Types: | Basement - * $395.00 Total Living Area may increase with Basement Foundation option. Crawlspace - * $295.00 Slab |
| Exterior Walls: | 2x6 |
| House Width: | 50'0 |
| House Depth: | 64'0 |
| Number of Stories: | 1 |
| Bedrooms: | 3 |
| Full Baths: | 2 |
| Max Ridge Height: | 18'11 from Front Door Floor Level |
| Primary Roof Pitch: | 4:12 |
| Roof Load: | 30 psf |
| Roof Framing: | Truss |
| Porch: | 939 sq ft |
| FirePlace: | Yes |
| Main Ceiling Height: | 9' |
Special Features:
Plan Description
Craftsman Style House Plan with Open Concept and Split Bedroom Layout
Craftsman House Plan 41841 has 2,030 square feet of living space. 3 bedrooms and 2 bathrooms are all located conveniently on one level. The exterior is enhanced with stone wainscot, metal siding, and decorative wood siding in a herringbone pattern. Pictured is a seam metal roof and rough hewn wooden columns with stone bases. Stunning outdoor spaces include a covered front porch with cathedral ceiling leading up to the front door. The cathedral ceiling continues through the house and ends with another covered porch in the rear. Enjoy the great stone fireplace on the back porch on a chilly fall evening.
Barndominium House Plan With Tons of Natural Light
Barndominium House Plan 41841 has open living space and great natural light. Firstly, we draw your attention to the featured picture. Notice the huge panels of glass surrounding the modern style front door. Well, you can see right through the house because the back exit is a wall of windows as well. Natural light floods the living space thanks to these picture windows. Secondly, the interior feels even more lofty due to the vaulted ceiling which runs the length of the great room and dining room (and as we mentioned outside through the porches).
Thirdly, the kitchen is tucked into the right side of the floor plan. The kitchen has a corner walk-in pantry which is a great use of space for storage. There is plenty of cabinet and counter space including a long counter with bar seating. Back windows by the sink look out to the back yard and covered porch. From here, you have quick access to the open dining space, so it's easy to entertain a large number of guests. Plus, if too many people are inside, the crowd will naturally gravitate to the plush outdoor furniture surrounding the stone fireplace.
Master Bedroom With Huge Walk-In Closet
We've looked at the impressive features of Barndominium House Plan 41841, but it also has a lot of function to offer as well. Bedrooms 2 and 3 are good-sized, and each has a standard size closet. These bedrooms are located at the front of the house on opposite sides of the living space. Occupants of these bedrooms share the guest bathroom which is centrally-located on the floor plan so that everyone has convenient access. Likewise, the large laundry room is a few steps away, and it includes a utility sink. These rooms are close by the back door.
The master bedroom measures about 14' wide by 15' deep, and it has pocket door access to a great bathroom. Mom and Dad have a double vanity, soaking tub, and separate shower. Open another pocket door to access a large walk-in closet. This closet is 10'1 wide by 8'7 deep, so you won't run out of storage for your favorite outfits.
What's Included?
4 elevations, all details, notes, etc...
Floor plans (1st, 2nd, bsmt, etc...)
Roof plan
Wall sections, sometimes building cross sections
Foundation plan & Foundation details
General notes page
Electrical plans for each floor.
Miscellaneous column, bracket, details, stair sections.
What is not included will be beam sizes, floor framing plan, roof framing plan, wall framing plans.
Modifications
Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!
We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.
Email Designer This is the best and quickest way to get a modification quote!
Please include your preferred Foundation Type and a Specific List of Changes. You can also attach a Sketch of Changes.
It's as simple as that!
Cost To Build
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
Q & A
Previous Q & A
A: The Laundry/Mechanical room is roughly 8'-8" x 10'-5"
A: The roof pitch above the porch is not different than pictured. The pictures you are viewing are exactly what the plan looks like. All I'm saying is the roof pitch over the porch is steeper than the roof pitch over the house. Interior renderings are available on the website you're currently viewing. Thank you!
A: Attached is the basement floor plan. The plan is 81' wide including the garage.
View Attached FileA: Many of these details are left to be considered by the contractor who would know the best way to frame the home for example. We leave these details to be figured out by someone who will be onsite and therefore we don't create any restrictions. When it comes to beams and trusses, all of these need to be engineered to align with local codes and regulations. Since we sell our plans on a national scale, we can't meet code for every customer. So, we leave these to be created by local lumber yards or truss manufacturers so they can meet code and get everything that's needed for your build. I hope this makes sense, thank you! Jackson
A: They are 9' ceilings, thank you!
A: Hi there! Our rough estimate is 3,555 sq. ft. Thank you!
A: We use 2x4 girts at 2'-0" O.C instead of sheathing with metal siding. The wood siding underneath the porch is only called out as "engineered wood siding" at this point. It is not a predetermined material from a specific manufacturer so it can be changed to whatever the customer is wanting. More specifically, the dimensions all go to the outside of the stud wall so nothing would change if materials like the siding are adjusted/changed. I hope this helps, thank you!
A: These print on 24 x 36in paper. The wall heights are 9' 1 1/8" because precut studs are 104 5/8", and then with three plates added (1 1/2" each), this comes out to the total. This is a standard wall height, but after all materials are added in the finished home (ceiling drywall, flooring), you are left with a 9' ceiling. I hope this makes sense, please let us know if you have any other questions.
A: Since this is such a vital part of this plan we hesitate to provide this specific information. In the end, there is a different roof pitch above the front door than the provided primary. We hope you're still interested in this plan, it's one of our most unique designs!
A: Roof framing plan would show and dimension each individual rafter and it's location. a roof plan is a birds eye view from above indicating wall heights, roof pitches, ridges, valleys, hips, etc... Brad
A: Good Afternoon! We do not draw any framing plans unfortunately. Most of the time your local lumber supplier will be able to provide the truss drawings and layout for you. Let me know if you have any other questions.
A: Good Morning! Yes! That dotted line represents the cathedral ceiling in the dining and living room. Thank you!
A: We don't typically provide the rough opening sizes and same for cabinetry. These details are often provided by the designer or manufacturer of the windows/cabinets you purchase. Each manufacturer varies slightly in their dimensions which is why we don't include those details. Once the plans are purchased, you'd easily be able to take them to your local manufacturer and have these specific kitchen and bathroom details created. Hope this helps!
A: Our plans include elevations, floorplans, wall sections, roof plan, foundation plan, and electrical plans.
A: This is a herringbone design pattern.
A: Most of this information will be answered by contractors or people providing the materials including lumber yards and truss designers. We do not know where this will possibly be built so that also makes a difference based on local contractors. Hoping this helps!
A: Good Morning! The ceiling height in the porch and the great room would be about 15'-0" at the peak depending how they frame it.
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
click for galleryInfo Brochure
Photographs may show modified designs.
Elevation

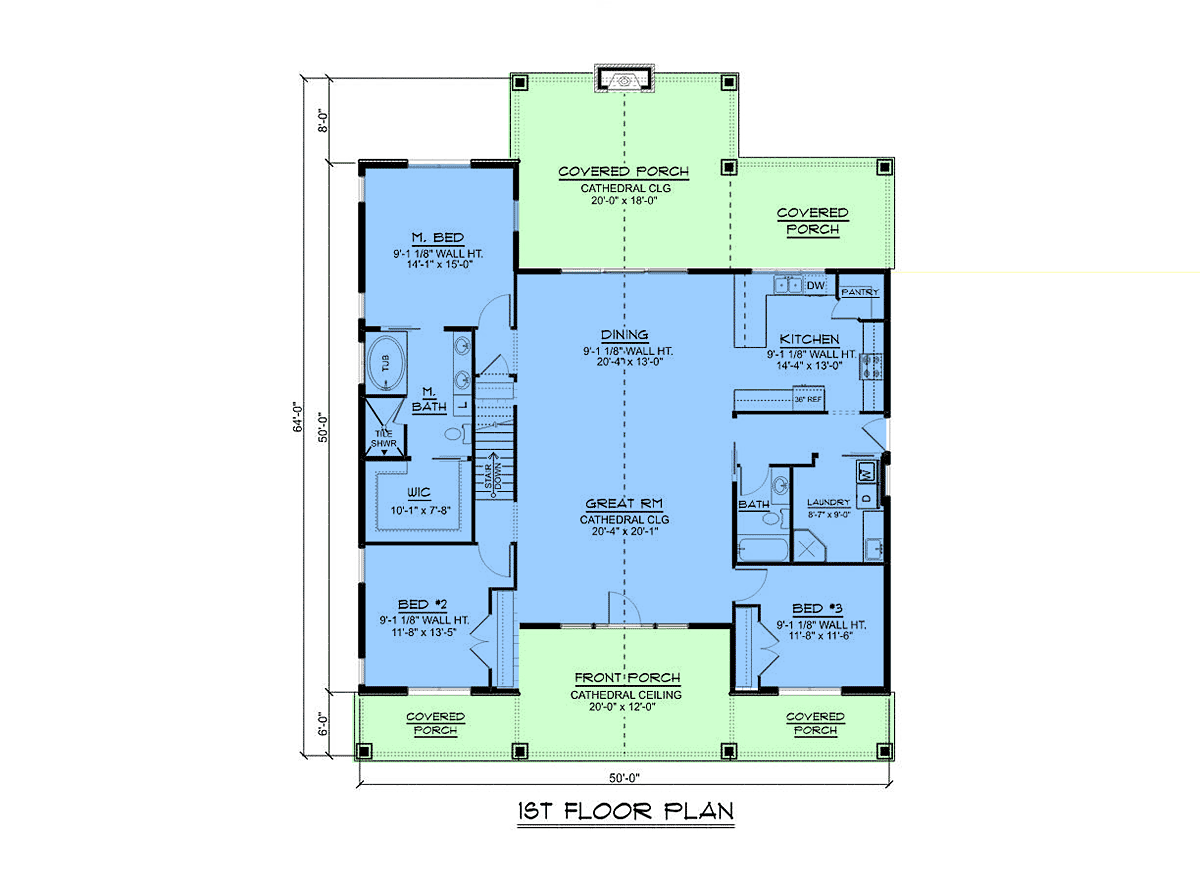

Level One
